What is Chemical Vapor Deposition (CVD)?

Discover how Linde's cutting-edge CVD and CVA technologies enable advanced thin films, coatings, and superalloy surface transformations for aerospace, semiconductors, and more.

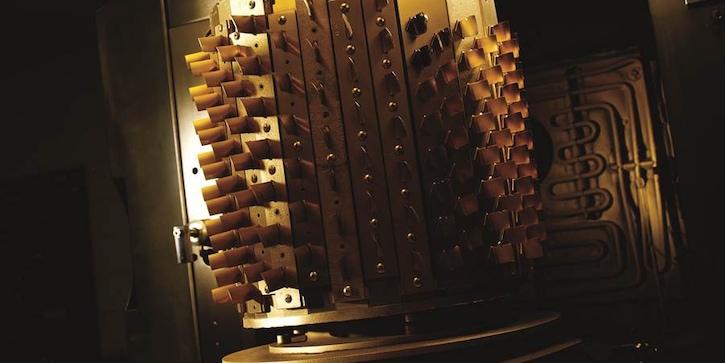

Aluminide coating process

Chemical vapor deposition (CVD) is a cornerstone technology in modern materials engineering, enabling the precise deposition of high-quality thin films and coatings essential for today's advanced manufacturing needs. This sophisticated process involves the controlled reaction of gaseous precursors to form solid materials that adhere to substrate surfaces. It delivers exceptional uniformity and performance characteristics that surpass traditional coating methods. CVD technology has evolved to meet increasingly complex specifications across aerospace, automotive, semiconductor, and advanced materials applications.

The Fundamentals of CVD

Basic Principles and Chemical Reactions

CVD uses controlled chemical reactions in the vapor phase. The process begins by introducing volatile precursor materials into a reaction chamber, which undergoes carefully managed chemical reactions to form the desired solid material on a substrate surface. These reactions can involve thermal decomposition, reduction, oxidation, or compound formation depending on the specific application requirements and desired coating properties. Initiated chemical vapor deposition presents an advanced variation of the process, particularly valuable for creating polymer thin films with precise control over molecular structure and composition.The chemistry behind CVD processes is precisely controlled through parameters such as temperature, pressure, and gas flow rates. This level of control enables the formation of high-purity materials with specific crystalline structures, compositions, and properties. CVD's versatility allows for the deposition of a wide range of materials, including metals, semiconductors, carbides, nitrides, and various compounds, each with unique characteristics suited to specific industrial applications.

Key Components and Equipment

CVD systems require sophisticated equipment to maintain precise control over deposition parameters. The essential components include:

  • Precursor Delivery System - Integrated equipment for precursor storage and delivery, featuring mass flow controllers and temperature-controlled vessels.
  • Reaction Chamber - Engineered deposition environment with temperature control and vacuum systems optimized for uniform gas flow.
  • Heating System - Thermal management using resistive, RF induction, or infrared heating for precise temperature control.
  • Gas Distribution System - Network of gas lines and controllers managing precursor and carrier gas flow.
  • Vacuum and Control Systems - High-performance pumps and instrumentation for maintaining pressure conditions and monitoring process parameters.
Step-by-Step Process Overview

The CVD process follows a systematic sequence of steps to achieve optimal deposition results:

  1. Substrate Preparation - Surface cleaning and activation to ensure optimal adhesion and film quality.
  2. Chamber Environment Setup - Establishing required temperature and pressure conditions with process gases.
  3. Precursor Introduction - Controlled delivery of precursor materials with inert carrier gases.
  4. Gas-Phase Reactions - Formation of intermediate species through precursor chemical reactions.
  5. Surface Reactions - Diffusion and reaction of species at the substrate surface.
  6. Film Growth - Controlled material buildup forming uniform coating layers.
  7. Process Completion - Removal of byproducts and controlled system cool-down with any required post-processing.

Types of Chemical Vapor Deposition Systems

Modern CVD technology encompasses several specialized systems, each optimized for specific applications:

  • Low-pressure CVD (LPCVD) - Operates at reduced pressures to enhance film uniformity and reduce unwanted gas-phase reactions. It is particularly valuable for semiconductor manufacturing, where exceptional uniformity is required.
  • Plasma-Enhanced CVD (PECVD) - Utilizes plasma activation to enable deposition at lower temperatures, making it ideal for temperature-sensitive substrates and electronics manufacturing.
  • Metal-Organic CVD (MOCVD) - Employs metal-organic compounds as precursors, enabling the deposition of compound semiconductors and advanced electronic materials with precise composition control.
  • Atomic Layer Deposition (ALD) - A specialized form of CVD that achieves atomic-level thickness control through sequential, self-limiting surface reactions.
  • Hot-Wall CVD - This type of CVD features heated chamber walls to maintain uniform temperature distribution. It is commonly used for batch processing in semiconductor manufacturing.
  • Cold-Wall CVD - Employs selective substrate heating to minimize unwanted deposition on chamber walls, optimizing precursor utilization and reducing maintenance requirements.

Applications and Uses of Chemical Vapor Deposition

Aerospace Industry

In aerospace applications, CVD technology enables the deposition of critical protective coatings that enhance component performance and longevity. These coatings protect jet engine components against high temperatures, oxidation, and corrosion.

Advanced CVD processes allow for the creation of thermal barrier coatings, wear-resistant surfaces, and specialized materials that meet the rigorous demands of aerospace applications.

Automotive Industry

The automotive sector leverages CVD technology to enhance component durability and performance. Applications include the deposition of wear-resistant coatings on engine components, hard carbon coatings for fuel injection systems, and decorative finishes with superior durability.

CVD processes enable the creation of advanced materials that, through reduced friction and enhanced thermal management, contribute to improved fuel efficiency and reduced emissions.

Semiconductor Manufacturing and Microelectronics

CVD plays a key role in semiconductor device fabrication, enabling the deposition of dielectric layers, conductive films, and specialized materials essential for modern microelectronics. The process allows for precise film thickness and composition control, which is critical for creating advanced integrated circuits and electronic components. High-purity silicon, silicon dioxide, and various compound semiconductors are routinely deposited using CVD technology.

Advanced Materials and Nanotechnology

In advanced materials and nanotechnology, the precise control of CVD processes enables the creation of novel materials with unique properties. Chemical vapor deposition growth techniques have revolutionized the synthesis of two-dimensional materials, from carbon nanotubes to atomically thin graphene layers. The process enables precise layer-by-layer formation of advanced materials such as hexagonal boron nitride, an ideal substrate and insulating material in next-generation electronics.

CVD methods have also become instrumental in producing transition metal dichalcogenides, offering unprecedented control over crystal structure and layer thickness. These advanced materials drive innovation across multiple sectors, from optoelectronics and quantum computing to energy storage and advanced composites.

Linde AMT's CVD Technology

At Linde Advanced Material Technologies (AMT), we specialize in providing cutting-edge solutions for a wide range of Chemical Vapor Deposition (CVD) technologies. Our expertise extends into unique applications like Chemical Vapor Aluminizing (CVA), a high-temperature CVD process that doesn’t just deposit a cold layer of material like in semiconductors but chemically transforms the surface of superalloy turbine components by diffusing aluminum into their structure.

Elevating Material Performance with Aluminide Coatings

Aluminide coatings are a type of diffusion surface treatment we offer that is designed to enhance the high-temperature performance of materials. Applied to Nickel- and Cobalt-based turbine airfoils, these coatings improve resistance to oxidation and corrosion, ensuring durable performance in extreme environments. We apply our aluminide coatings to internal and external surfaces through multiple methods, including:

  • Vapor Phase Aluminide (VPA)
  • Platinum Aluminide
  • Pack Cementation
  • Slurry Aluminide
Why Partner with Linde?

Linde AMT is steadfastly committed to advancing CVD technology through continuous innovation and development. Our state-of-the-art CVD systems are engineered to deliver exceptional coating quality, process reliability, and operational efficiency. With decades of experience in materials technology and surface engineering, we provide comprehensive CVD solutions that meet the most demanding requirements across various industries.

Our expert team works closely with customers to optimize processes, enhance productivity, and achieve superior coating results. Contact our technical experts today to explore how our CVD technology can advance your manufacturing capabilities and product performance.

FAQs

What are the main advantages of chemical vapor deposition?
CVD offers several key advantages, including exceptional coating uniformity, high purity levels, excellent adhesion to substrates, and the ability to coat complex geometries uniformly. The process also provides precise control over coating thickness and composition, enabling customization for specific application requirements.

How does chemical vapor deposition compare to other coating methods?
Chemical vapor deposition features distinct characteristics that set it apart from other coating technologies like physical vapor deposition (PVD). CVD excels at producing uniform coatings on complex geometries and enables strong adhesion to substrates at typically higher deposition rates and temperatures. Each coating method has specific advantages that make it suitable for different applications, allowing manufacturers to select the optimal process based on their requirements.

What materials can be deposited using chemical vapor deposition?
CVD can deposit diverse materials, including pure metals, metal alloys, semiconductors, carbides, nitrides, oxides, and various compounds. Common materials include silicon, tungsten, titanium nitride, silicon dioxide, and diamond-like carbon.

What factors affect the quality of CVD coatings?
Several key parameters influence the quality of CVD coatings, including substrate temperature, chamber pressure, precursor concentration, gas flow rates, and substrate surface condition. Proper control of these factors is essential for achieving desired coating properties such as thickness uniformity, composition, and microstructure.
