Sputtering Targets for Semiconductors: Materials, Precision, and Performance

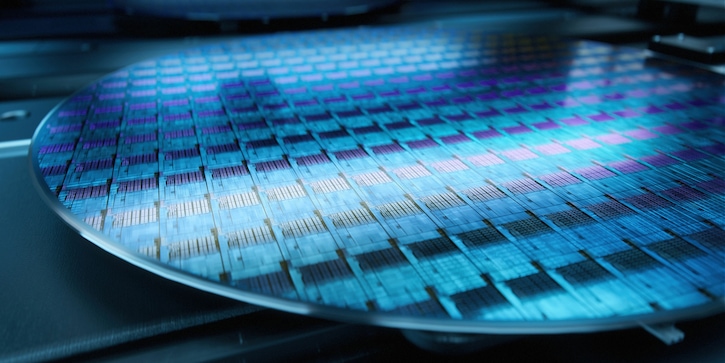

Modern semiconductor manufacturing depends on layers. Transistors, interconnects, barrier films, and electrodes are all built from thin films deposited with exacting precision onto silicon wafers and other substrates. The uniformity, purity, and consistency of those films are directly tied to the quality of the sputtering targets used to produce them. Selecting the right target material, manufactured to the right standard, is not a secondary concern. It is a foundational one.

What Is Sputtering and How Does PVD Work?

Physical vapor deposition, or PVD, describes a family of vacuum-based processes in which a solid material is converted to a vapor phase and then deposited as a thin film onto a target substrate. Sputtering is the most widely used PVD process in semiconductor manufacturing, alongside evaporation.

In sputtering, a solid target material is bombarded by energetic particles, typically ions from a plasma or inert gas source. The energy transfer from those ions to the target surface causes microscopic particles to eject from the material. Those ejected particles travel through the vacuum environment and condense onto the substrate, forming a thin, uniform film.

The process calls for control. Film thickness must be uniform across the entire wafer surface. Composition must be tightly controlled. Contamination must be minimized. And performance must remain consistent from the beginning of a target's service life to the end. Each of these requirements places direct demands on the quality of the sputtering target itself.

Why Target Material Quality Defines Process Outcomes

The sputtering target is not a passive consumable. Its material properties actively shape the quality of every film it produces. Inconsistencies in a target's microstructure, chemistry, or purity translate directly into process variation, and in semiconductor manufacturing, process variation has consequences that compound across hundreds of subsequent steps.

Four performance outcomes are most directly tied to target quality:

• Reduced in-film particle generation: Fewer defects in deposited films
• Increased sputter life: Extending usable target lifetime and reducing the frequency of chamber maintenance
• Improved Rs uniformity: Consistent sheet resistance across the wafer surface
• Consistent sputter performance across target lifetime: Stable film properties from first use to end of service life

Achieving these outcomes requires a target supplier with the manufacturing discipline and materials expertise to deliver consistency not just across a single target, but across every target in a production program.

Sputtering Target Materials and Purity Levels

Sputtering targets for semiconductors are available across a broad range of materials, each with specific purity requirements and process considerations determined by the application.

• Tantalum: Greater than 99.9998% purity (5N8); diverse supply chain and excellent control of microstructure
• Copper and copper alloys: Greater than 99.9999% purity (6N); vertical integration spanning refining and melting, with tight control of homogeneity in manganese composition and grain size microstructure
• Aluminum and aluminum alloys: 99.999% purity (5N); vertical integration and precise control of chemistry
• Tungsten and tungsten alloys: Greater than 99.995% purity (4N5 and 5N grades); in-house process yielding homogeneous microstructure
• Titanium: Greater than 99.999% purity (5N); consistent process flow offering stable performance through target lifetime at leading semiconductor fabs
• Nickel and nickel alloys: Greater than 99.99% purity (4N); multiple supply options ensuring consistent product quality
• Gold: Available for semiconductor applications; contact Linde AMT for specifications and purchasing options

Precious metal sputtering targets are also available, with multiple purchasing options designed to reduce transaction costs and metal adder fees.

Manufacturing Capabilities

Sputtering targets for semiconductor applications are manufactured using two primary processes: powder metallurgy and casting. The choice of process depends on the material system and the performance requirements of the application. Both approaches must be executed with the process discipline required to supply leading semiconductor fabs. Consistent grain structure, controlled microstructure, and low lot-to-lot variation are not optional at this level of manufacturing.

Customization capabilities and dedicated model shop resources allow specialized target designs to move from initial prototype through to full-scale production. For process development programs or non-standard geometries, this flexibility means specifications do not need to be compromised to fit a standard catalog offering.

Applications in Semiconductor and Electronics Manufacturing

Sputtering targets serve a diverse range of end-use applications across the semiconductor and advanced electronics industries:

• Automotive electronics
• 5G communications
• Cellular devices
• Cloud computing hardware
• Cameras
• Flat panel displays
• Memory devices
• Photovoltaic cells

Each of these markets places distinct demands on the materials and manufacturing standards behind the targets that serve them.

The Linde AMT Advantage

What distinguishes Linde AMT in the sputtering target market is the depth of integration behind every product. Vertical integration spanning raw material sourcing through manufacturing means process control is maintained at every step. For materials like copper and aluminum, that integration enables the tight compositional control that advanced applications require. For other materials, in-house process development supports the microstructural consistency that stable sputter performance depends on.

Research and development capabilities support customers working at the boundary of established processes. Whether the need is a new alloy composition, a non-standard geometry, or a target engineered for an emerging application, Linde AMT's R&D team can partner with customers from early development through production qualification.

That technical capability is backed by global operational infrastructure. With 35 locations across 12 countries and more than a century of materials science history, Linde AMT brings institutional depth and supply chain resilience to every customer relationship. Multiple supply options across key product lines reflect a deliberate approach to supply security that procurement teams at leading fabs recognize as a differentiator.

The result is a sputtering target supplier that operates as a process partner, not simply a materials vendor.

Frequently Asked Questions

What materials does Linde AMT offer for sputtering targets?

Linde AMT offers sputtering targets in tantalum, copper and copper alloys, aluminum and aluminum alloys, tungsten and tungsten alloys, titanium, nickel and nickel alloys, and precious metals. Each material is manufactured to stringent purity specifications with material-specific process controls designed to meet the performance demands of leading semiconductor fabs.

How does Linde AMT manufacture its sputtering targets?

Linde AMT manufactures sputtering targets using powder metallurgy and casting processes, with the method selected based on the material system and application requirements. Both approaches are executed with the process discipline needed to deliver consistent microstructure, controlled grain size, and stable performance across the target lifetime.

What semiconductor and electronics applications do Linde AMT targets serve?

Linde AMT sputtering targets are used across a diverse range of applications, including automotive electronics, 5G communications, cellular devices, cloud computing hardware, flat panel displays, memory devices, cameras, and photovoltaic cells. This breadth reflects the versatility of Linde AMT's materials portfolio and the consistent performance standards that manufacturers across these markets require.
