Thin Film Deposition Materials for Semiconductor and Electronics Applications

Modern electronics depend on layers you cannot see. The circuits inside a semiconductor chip, the conductive pathways in a communication device, the protective barriers on automotive electronics components; all of them are built from thin films measured in nanometers. Behind every one of those films is a material choice that determines whether the final product performs, fails, or falls short of specification.

Thin film deposition materials are the engineered inputs that make this precision possible. They are the metals, alloys, compounds, and ceramics that get deposited onto a substrate to create the functional structures modern electronics rely on. Selecting the right material and sourcing it at the right purity and consistency is a critical decision in advanced electronics manufacturing.

What Are Thin Film Deposition Materials?

Thin film deposition is the process of applying an extremely thin layer of material, often just a few atoms thick, onto a substrate surface. These layers serve a wide range of functional purposes: conducting electricity, blocking diffusion, providing insulation, reflecting light, or protecting underlying surfaces from wear and corrosion.

The materials used in this process are specifically engineered to deposit predictably and uniformly under controlled conditions. Their physical and chemical properties (purity, density, crystalline structure, and particle morphology) directly determine the characteristics of the finished film. A film deposited from a low-purity source material will carry those impurities into the final device, affecting performance and long-term reliability.

It is important to distinguish between the deposition process and the deposition material itself. Physical vapor deposition (PVD), and specifically sputtering, describes the mechanism by which material is transferred to the substrate. The material is a separate and equally critical variable. Process and material must be matched deliberately. A well-optimized process running on a poorly specified material will not yield a well-performing film.

Types of Thin Film Deposition Materials

Not all thin film deposition materials serve the same purpose, and the category spans a broad range of chemistries and forms. Understanding the landscape helps engineers and procurement teams make better-informed sourcing decisions.

Pure Metals and Alloys

Pure metals such as titanium, tungsten, aluminum, and copper are foundational thin film deposition materials in semiconductor manufacturing. They form conductive layers, seed layers, and diffusion barriers between active device regions. Alloys, carefully controlled mixtures of two or more metals, extend this functionality by tuning electrical, mechanical, or thermal properties for specific applications. Consistency in alloy composition from lot to lot is essential; even minor deviations can introduce variability into device performance across a production run.

Sputtering and the Role of the Deposition Material

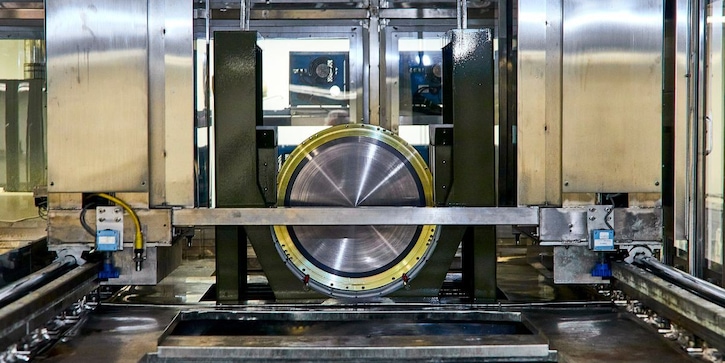

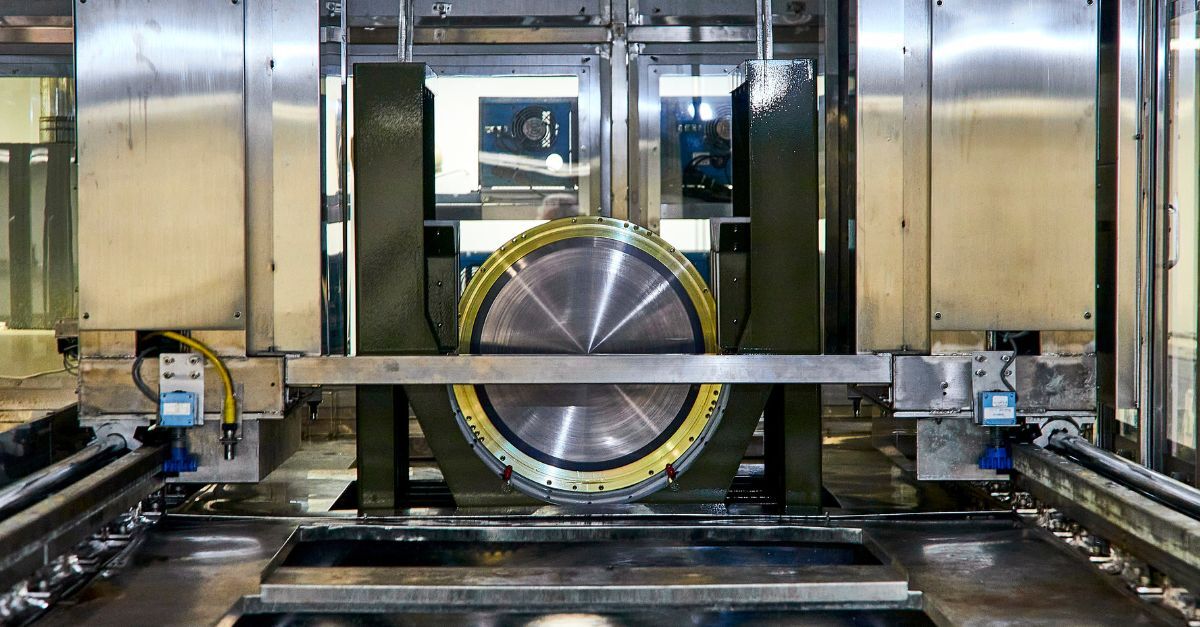

In sputtering, a target material is bombarded by energized ions, which eject atoms from the surface. Those atoms travel through a vacuum and deposit onto the substrate as a thin film. The sputtering target is the deposition material in this context, and its quality (density, purity, grain structure, and dimensional precision) determines the uniformity and integrity of the deposited film.

This is why sputtering target manufacturing is a discipline in its own right. Targets are produced using powder metallurgy or casting processes, each suited to different material types and performance requirements. Customization of target geometry and material composition is common, particularly as device architectures grow more complex and standard catalog offerings fall short of specification.

The quality requirements for a sputtering target are demanding precisely because any deficiency in the source material propagates directly into the finished film. Material manufacturing and process expertise must go hand in hand, a well-engineered target requires both the right chemistry and the right production process to deliver consistent results at scale.

Linde AMT manufactures sputtering targets for semiconductor and consumer electronics applications, including automotive, communication, cellular, and computing end markets, with customization available for unique geometries and material compositions.

Applications: Where Thin Film Deposition Materials Are Used

Thin film deposition materials are present across high-precision manufacturing environments in semiconductor, electronics, automotive, and communications production. Linde AMT's materials serve customers across several key end markets:

• Semiconductors: Conductive metal layers, barrier layers, and gate structures that form the building blocks of integrated circuits and memory devices
• Consumer electronics: Components inside smartphones, tablets, laptops, and other computing devices that depend on reliable, high-purity thin films
• Automotive electronics: Control systems and communication components requiring consistent film performance under demanding operating conditions
• Cellular and communication devices: RF components and related structures where material purity and film uniformity must meet precise specifications

Across all of these markets, the common requirement is the same: thin film deposition materials that perform consistently, lot after lot, at the purity levels advanced manufacturing demands.

What Makes a High-Quality Thin Film Deposition Material?

Quality in thin film deposition materials is not a single attribute, it is a combination of properties that must be achieved together and sustained reliably across production. The following characteristics define what high-performance deposition materials require.

• Purity is the most visible quality marker. Trace contaminants in a deposition material can introduce defects into a film, alter its electrical properties, or create reliability problems that surface only during device operation. High-purity specifications are standard in semiconductor applications for precisely this reason.
• Lot-to-lot consistency is equally important but often harder to achieve. A material that meets purity specifications in one production run must meet them in the next, without process engineers having to re-qualify parameters or adjust for variation. In high-volume manufacturing, process stability is yield, and yield starts with the source material.
• Particle size and morphology matter significantly for powder-based deposition materials. Spherical, uniformly sized particles flow and sinter more predictably, producing targets and films with better density and fewer defect sites. These are characteristics that must be engineered into the material, not screened for afterward.
• Target density and microstructure are critical for sputtering targets specifically. A high-density target with a controlled grain structure produces a more stable, uniform sputter rate and generates fewer particulate defects during operation, directly influencing film quality and thin film deposition process reliability.

Linde AMT's Thin Film Deposition Materials Capability

Linde Advanced Material Technologies brings together materials science, manufacturing infrastructure, and application expertise developed over more than 75 years of industrial innovation. Our thin film deposition materials capability is built on two integrated product lines that address different points in the deposition process.

Our sputtering targets are manufactured using powder metallurgy and casting, with customization available to meet unique compositional and dimensional requirements. For customers developing next-generation devices, our R&D team can partner on prototype targets and scale proven formulations to full production volumes. We manage the complete product lifecycle, from high-purity raw materials through market delivery and end-of-life target management, giving customers a single, accountable partner across the full material supply chain.

Our TRUFORM™ gas-atomized metal powders are engineered for applications where material consistency is critical to process performance. Key characteristics include:

• True spherical particle shape for predictable flow and sintering behavior
• High purity with rigorous lot-to-lot quality control
• Precise size distribution designed for minimal process variation
• Performance validated across advanced manufacturing environments

Together, these capabilities reflect an integrated model spanning powder production, target manufacturing, and lifecycle management under a single roof.

With more than 2,500 engineers, technologists, and experts operating across 35 locations in 12 countries, Linde AMT is positioned to support global manufacturing programs at scale, with the technical depth to address application-specific challenges wherever they arise.

Exploring Other Surface Engineering Processes

Thin film deposition is one approach to engineering a surface for performance. For applications that demand thicker coatings, higher deposition rates, or performance under high-wear, high-heat, or corrosive conditions, thermal spray and HVAF spray processes offer complementary solutions.

Unlike thin film deposition, which operates at the nanometer scale in a vacuum environment, thermal spray processes deposit material at greater thicknesses onto a wide range of substrate types, making them well-suited for industrial components, aerospace parts, and equipment operating in demanding environments. HVAF spray, a high velocity air fuel variant of thermal spray, produces particularly dense, well-adhered coatings with low oxide content, and is increasingly used as an alternative to hard chrome plating and other legacy surface treatments.

For manufacturers evaluating surface engineering options across different applications and performance requirements, understanding where thin film deposition ends and thermal spray begins is an important part of the specification process.

Work With Linde AMT

Linde Advanced Material Technologies has been developing advanced materials and surface engineering solutions for over 75 years. What began in the early 1900s as pioneering work with acetylene and industrial gases evolved into the development of surface coating technologies that now protect and extend the life of critical components across aerospace, semiconductor, electronics, and heavy industry worldwide.

Our mission is straightforward: to make our world more productive. We pursue that mission by developing solutions that extend component life, improve operational efficiency, and support our customers' sustainability goals without compromising on performance or quality. Every product we bring to market reflects a commitment to safety, integrity, and continuous improvement that has defined this organization since its founding.

Frequently Asked Questions

What is a sputtering target and how does it relate to thin film deposition?

A sputtering target is the source material used in physical vapor deposition (PVD) processes. During sputtering, energized ions bombard the target, ejecting atoms that travel through a vacuum and deposit onto the substrate as a thin film. The quality of the target (its purity, density, and grain structure) directly determines the quality of the deposited film.

What industries use thin film deposition materials?

Thin film deposition materials are used across semiconductor manufacturing, consumer electronics, automotive electronics, and cellular and communication device production. Any application requiring precise, high-purity layers deposited onto a substrate surface is a candidate for these materials.

How does Linde AMT ensure consistency across production runs?

ot-to-lot consistency is a core quality requirement across Linde AMT's materials portfolio. Our TRUFORM™ gas-atomized metal powders and sputtering targets are manufactured to minimize variation between production runs, supporting process stability and yield in high-volume manufacturing environments.
